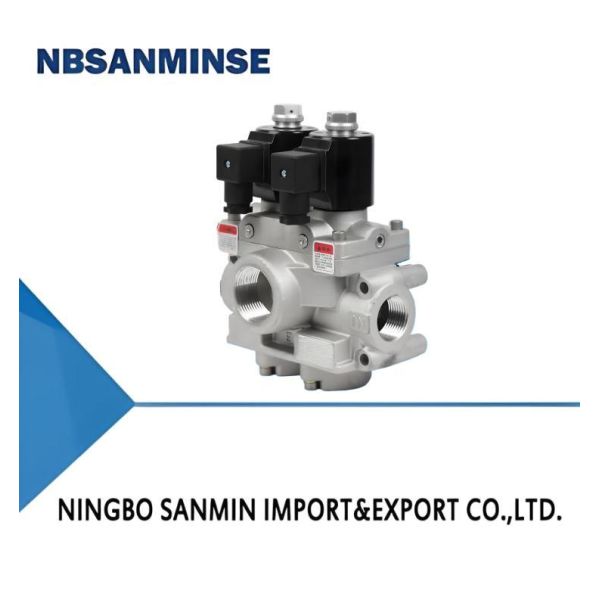

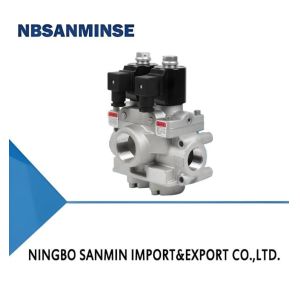

On the basis of many years of use of the punching machine, further improve the responsiveness, the pursuit of reliability.
The new solenoid uses DIN terminals and coil locks to ensure highwater resistance.
A complete range of airclutches and brake controls for small, medium, large and high speed mechanical stamping.
The valve structure with large exhaust characteristics and fast response can achisve small deviation.
When a vavefails, the cross-sectional area of the exhaust gas pathis greaterthan the cross-sectional area of the supply
gas path. The pressure on the OUT sideis lower than the operating pressure of the clutch or brake, so the press does not
operate. The safety factor is higher than that of a singlesolenoid valve configured in the stamping machinery.
Standard equipment with manuallyoperated buttons is regularly checked for easy maintenance.
Order Code:
① Medium: Air
② Circuit Form: 2/3 Way
③ Valve Body Form: Poppet Type
④ Dual Valve
⑤ Control Form: Electric Control
⑥ Connection Type: Pipe Connection
⑦ Nominal Diameter: 15 G1/2, 20 G3/4, 25 G1, 32 G1-1/4, 40 G1-1/2
⑧ Product Model: HSX Series
⑨ Rated Voltage: AC100V, AC110V, AC200V, AC220V, DC-24V
Symbols:
| Type | Nominal Dia | IN | OUT | EX | M | N | L | G | H | P | E | F |
| K23JSD-L15W | 15 | G1/2 | G1/2 | G3/4 | 67 | 142 | 177 | 128 | 35 | 50 | 65 | 65 |
| K23JSD-L20W | 20 | G3/4 | G3/4 | G1-1/4 | 102 | 165 | 202 | 140 | 52 | 50 | 72 | 71.4 |
| K23JSD-L25W | 25 | G1 | G1 | G1-1/4 | 102 | 165 | 202 | 140 | 52 | 50 | 72 | 71.4 |
| K23JSD-L15W | 15 | G1/2 | G1/2 | G1 | 72 | 142 | 177 | 128 | 44 | 50 | 65 | 64 |
| K23JSD-L20W | 20 | G3/4 | G3/4 | G1 | 72 | 142 | 177 | 128 | 44 | 50 | 65 | 64 |
| K23JSD-L32W | 32 | G1-1/4 | G1-1/4 | G2 | 125 | 259 | 290 | 217 | 77 | 50 | 110 | 124 |
| K23JSD-L40W | 40 | G1-1/2 | G1-1/2 | G2 | 125 | 259 | 290 | 217 | 77 | 50 | 110 | 124 |
| Par ameters | Type | K23JSD-L15W | K23JSD-L20W | K23JSD-L25W | K23JSD-L15W | K23JSD-L2W |
| Dia |
| 15 | 20 | 25 | 15 | 20 |
| Port size | IN | G1/2 | G3/4 | G1 | G1/2 | G3/4 |
| OUT | G1/2 | G3/4 | G1 | G1/2 | G3/4 |
| EX | G3/4 | G1-1/4 | G1-1/4 | G1 | G1 |
| Range of working pressure(Ipa) |
| 0.2-0.7 |
| Torking temperature℃) |
| 5-40 |
| Direction changing Tine(sec) |
| ≤0.01 | ≤0.012 | ≤0.012 | ≤0.012 | ≤0.012 |
| HEffective sectional area Cv(mm²) | IN OUT | 22 | 55 | 55 | 45 | 45 |
| OUT EX | 160 | 280 | 320 | 188 | 270 |
| Valve Type | K23JSD-W,H23JSD-W |
| Rated Voltage | DC 24V |
| Holding Current | 0.32 |
| Power Consumption(W) | 7.7 |
